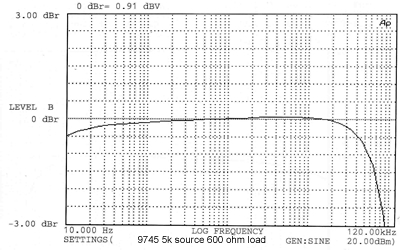

FREQUENCY RESPONSE with 5K source and 600 Ohm loadAPPLICATION For use in a high performance valve compressor/amplifier etc where high output level and exceptional bandwidth are required. Designed for use with Push-Pull output stage or an ac coupled cathode follower or SRPP circuit driving a
nominal 600 ohm line. Can be configured for low output impedance (10:1) or high level output (5:1) by connecting the twin secondary windings in parallel or series. |
||||

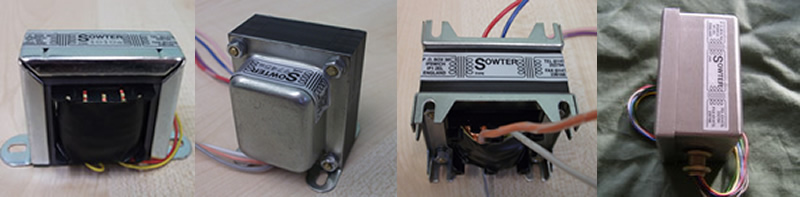

FEATURES High grade Grain Oriented Silicon Iron (M6) core. Double two chamber bobbin for geometric balance. Very good bandwidth when driven from a source of up to 10000 Ohms. Normally supplied with colour coded leads. PCB pins or soldertags avaialble as a no charge option for the open style package. |
||||
RATIO |
10:1 or 5:1 |
|||
FREQUENCY RESPONSE (Typical) 10K Ohm source 20K Ohm load |
+/- 0.5 dB 10 Hz to 50 kHz typical |
MAXIMUM PRIMARY DC per side |
30 mA |
|
PRIMARY INDUCTANCE (Typical) |
75H |
|||
Total DC RESISTANCE (ref secondary) |
77 Ohms |
|||
MAX LEVEL at 50Hz |
+36 dBu (600 okm configuration) |
|||
