APPLICATION. Recording quality microphone transformer designed for this excellent amplifier originally used by the Beatles at Abbey Road. Ratio 1:7 with 35% secondary tap. Very large 100% Mumetal core and thick Mumetal can. Colour coded leads.Threaded grommet and M3 fixing screws options. |
||||
FEATURES Mumetal core for minimal harmonic
distortion and exceptional bandwidth. Very high primary inductance for minimal loading on a source up to 600 Ohms. Multiple interleaved
windings ensuring exceptionally high frequency response. Very
low phase shift ensures excellent transient response. Mumetal
can for magnetic shielding. A relatively large core ensures high level
capability. Threaded grommet and M3 fixing screws options. For dimensions click HERE |
||||

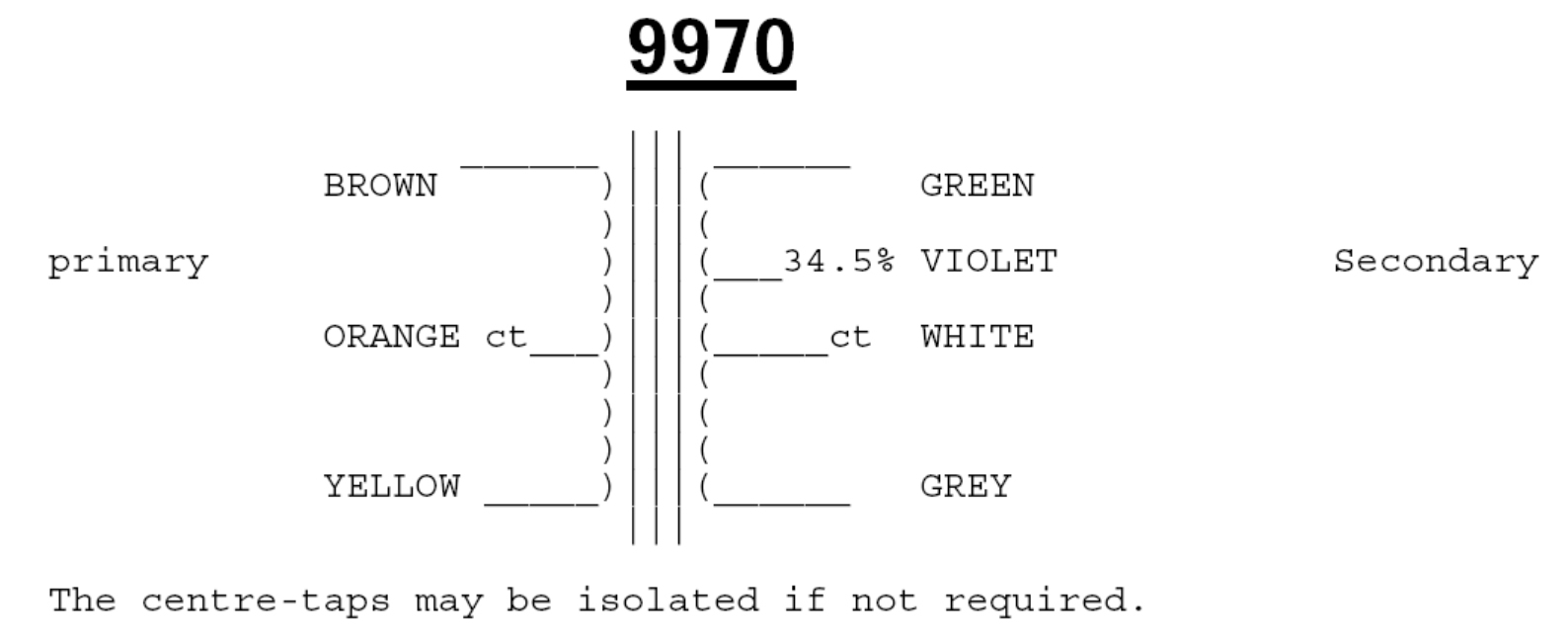

RATIO |
1:7 with 35% secondary tap |
|||

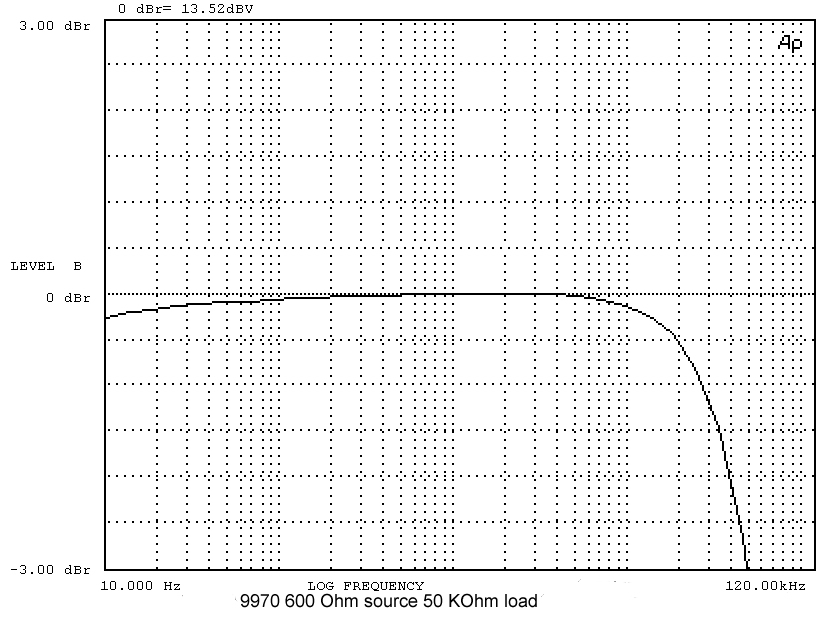

FREQUENCY RESPONSE (Typical) 600 Ohm source 50 K Ohm load |
3 dB 5 Hz and 50 kHz |
|||
PRIMARY INDUCTANCE (Typical) |
15 H |
|||
DC RESISTANCE (Primary typical) |
26.3 Ohms |
|||
DC RESISTANCE (Secondary typical) |
1.62 K Ohms |
|||
MAX LEVEL at 50 Hz |
+24.4 dBu |
|||
