SOWTER AUDIO TRANSFORMERS
1480 STUDIO CARTRIDGE SUT TRANSFORMER WITH OUTSTANDING BANDWIDTH

EXCEPTIONAL PERFORMANCE TRANSFORMER WITH FULL GEOMETRIC BALANCE. - BUY

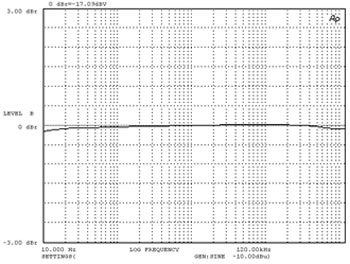

Sowter 1480 SUT Frequency  response

Type 1480 Source 3 Ohms load 3000 Ohms

TRIAD HS-29 replacement
FEATURES Multiple interleaved windings ensuring exceptionally virtually flat response from 10 hz to 120 KHz. Negligible phase shift ensures a unique sound with excellent transient response. Balanced two chamber winding. The two chamber winding also ensures the two secondary windings are identical in resistance, capacitance and coupling factor resulting in almost perfect phase split drive to balanced amplifier even at high frequencies. A relatively large core ensures negligible harmonic distortion. Can be configured for 1:10 or 1:5 ratio. Mumetal can for magnetic shielding. Available with threades grommet or M3 threaded mounting holes. See HERE

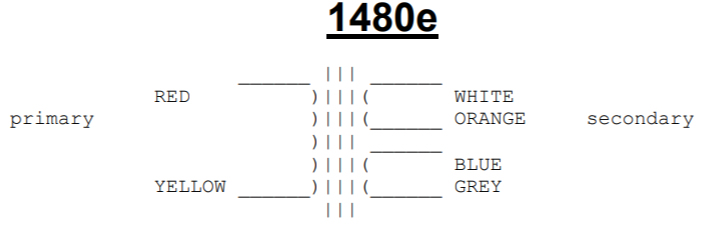

CONFIGURATION For normal 1:10 use to an unbalanced input connect Orange to Blue and insulate. For push-pull use Orange-Blue as the center tap. For 1:5 operation connect White to Blue and Orange to Grey
APPLICATION combines the functions of a cartridge step-up transformer and a highly accurate phase splitter for use in phono stage amplifiers using balanced transistor or valve circuits. Ideal for push-pull power amplifiers. Can be driven from a cartridge with balanced or unbalanced cable. Provides high common mode noise isolation. Suitable for cartridges in the range 2 to 15 Ohms. Replaces Sowter type 8055.
RATIO
1:5+5. Configurable as 1:10 with center tap or 1:5
FREQUENCY RESPONSE (Typical) 10K Ohm source 20K Ohm load
Essentially flat from 10Hz to 120 KHz
PHASE SHIFT UNBALANCE
<1.0 degree
PRIMARY INDUCTANCE (Typical)
180 mH
DC RESISTANCE PRIMARY
0.29 Ohms
DC RESISTANCE SECONDARY
60 Ohms
