Large 100% Mumetal core to ensure a high inductance and high input impedance over a wide frequency range. 2 chamber bobbin to ensure full geometric balance. Available with threaded grommet (Style e) or 2 M3 threaded mounting holes (Style i). For dimensions CLICK HERE

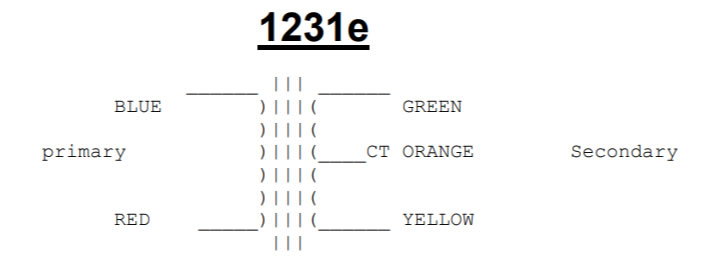

| RATIO | 1:2.3 CT |
| IMPEDANCE RATIO | 15K/80K CT |
| MAXIMUM INPUT LEVEL 0.5 % THD at 50 Hz (40 ohm source) | 37 dBu |
| PRIMARY INDUCTANCE | 220 H approx |
| DC Resistance (primary) | 485 Ohms approx |
| DC Resistance (secondary) | 2800 Ohms approx |

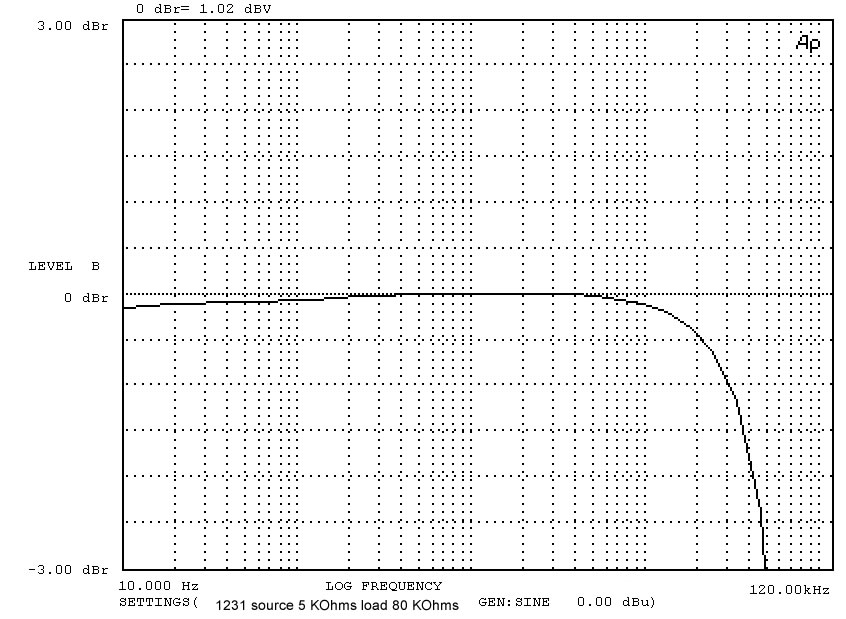

| FREQUENCY RESPONSE 5 KOhm source 80 KOhm load. (-3 dB points) | 5 Hz to 50 KHz |
