SOWTER AUDIO TRANSFORMERS

MUMETAL PARAFEED OUTPUT TRANSFORMERS Type 8995 and 8983

 PACKAGE OPTIONS STYLE CODE
Fully Shrouded S
Drop Through T

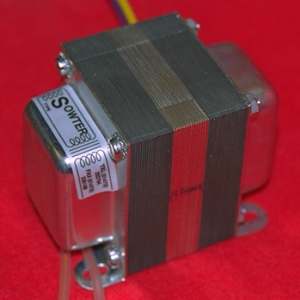

9885 Mumetal Parafeed transformer Sowter Sowter mumetal parafeed transformers
APPLICATION Output transformers with exceptional bandwidth, dynamic range and low distortion for low power valve amplifiers using a plate choke and isloating capacitor.
FEATURES Combination cores using a sandwich of highest grade low loss (M6) grain oriented silicon iron and Mumetal (76% Nickel) laminations. The Mumetal which has the property of minimal distortion and very high permeability even at very low excitation carries the low intensity and high frequency sounds. The M6 carries the full power base sounds. Multiple interleaved winding sections to maximize bandwidth and ensure clean transient response. Low copper resistance to minimize losses and maximize loudspeaker damping.
SOWTER Type Suggested valve Primary Z
Ohms		 Secondary Z
Ohms		 Power
20 Hz		 Power
40 Hz		 LF
-3 dB		 HF
-3 dB

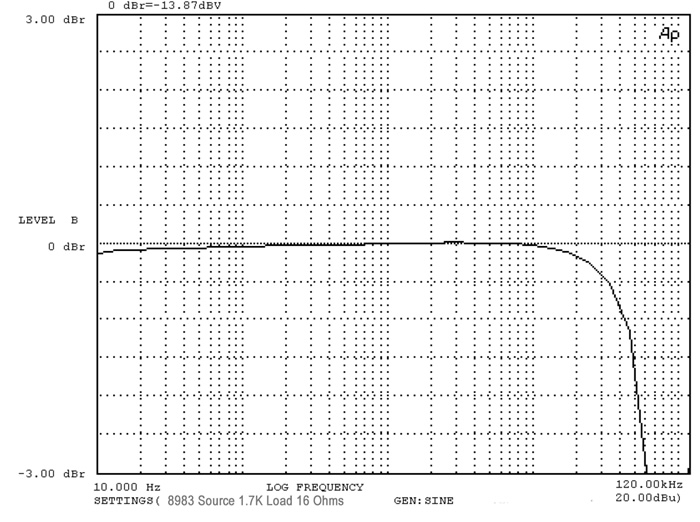

8983   5000 16/8 5 10 10 Hz 50 kHz

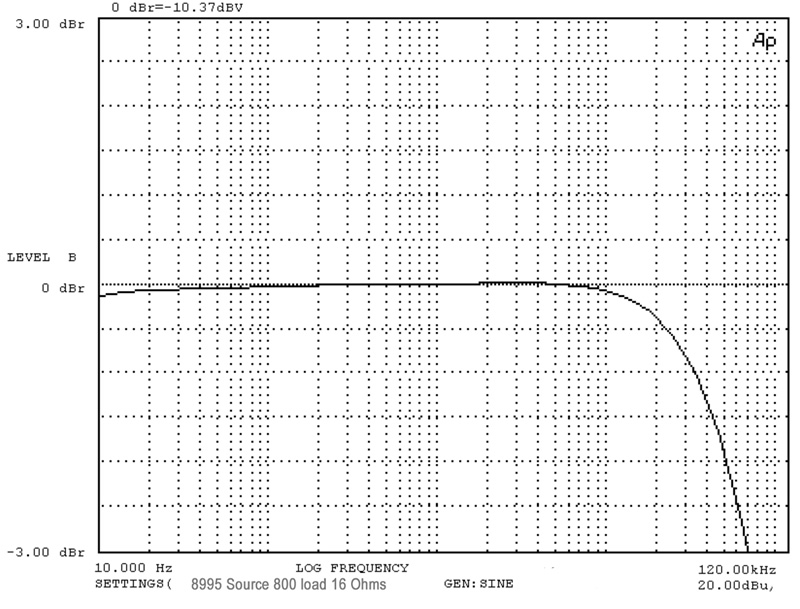

8995 2A3 2500 16/8 3.5 7 5 Hz 60 kHz

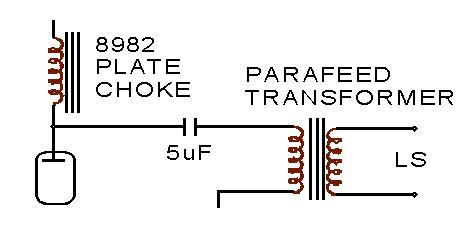

Parafeed transformer schematic Parafeed output transformerDimensions:



Weight:
0.8 kg
