VINTAGE COMPRESSOR TRANSFORMERS J to Z

Page:  1  2   >   >>   View All (19)

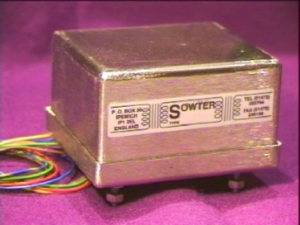

1486  LA3A or 1176LN Rev F Output transformer 50+50/150+150 Ohms

1486 LA3A or 1176LN Rev F Output transformer 50+50/150+150 Ohms

Sowter replacement for B11148. Pro Audio Size K. Package options.

Price: 60.35 (Excluding VAT at 20%)

Package options

Schematic

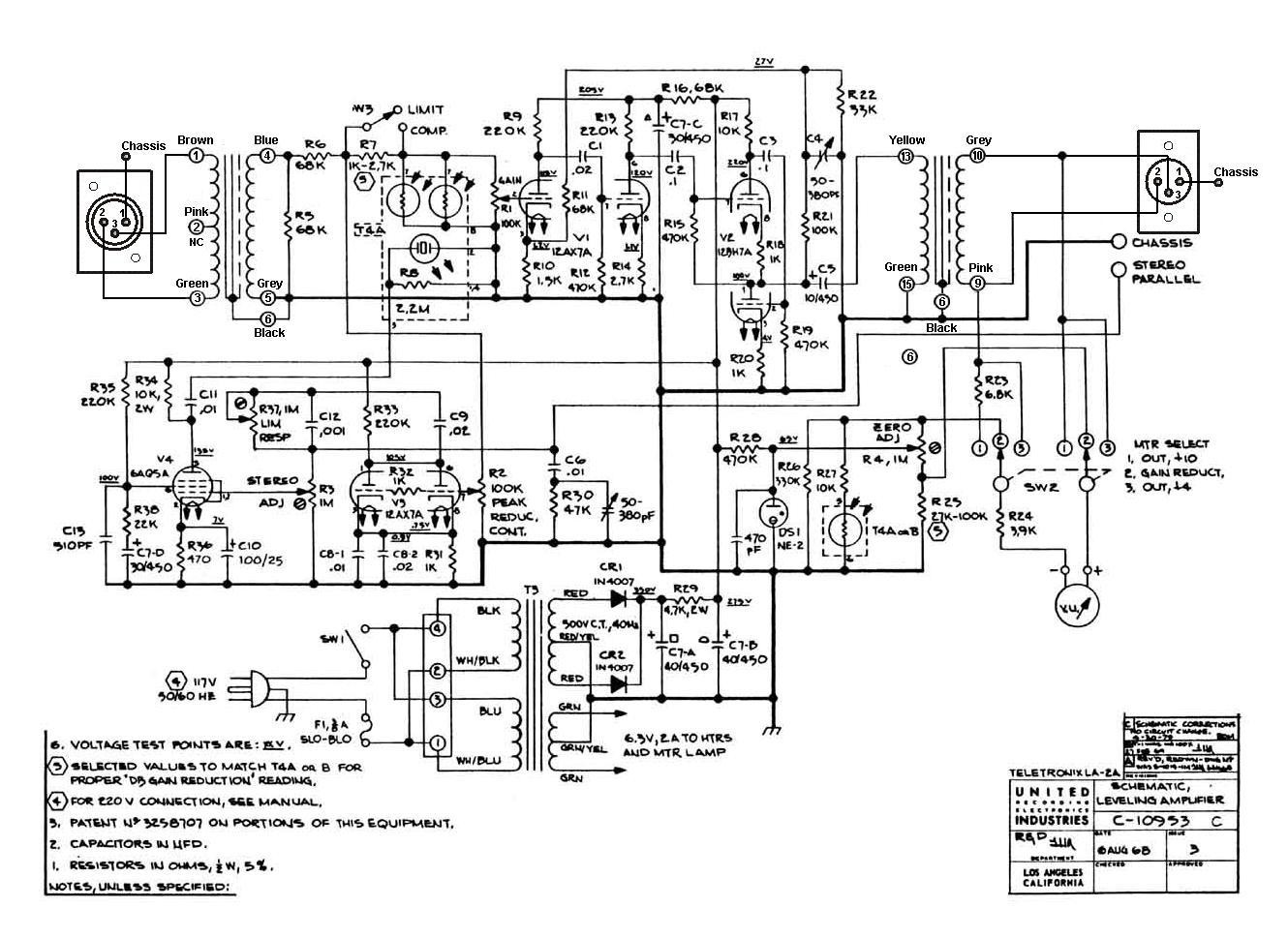

1290 Teletronix LA-2A 1968 15K/600 Line op.

1290 Teletronix LA-2A 1968 15K/600 Line op.

Ratio 5:1. 15k/600 ohms output transformer for driving balanced line from ac coupled cathode follower or SRPP circuit. Total dc resistance ref secondary 31 ohms. Colour coded leads and threaded grommet mounting. Max output level +30 dBu. 30% Mumetal core for exceptional bandwidth and dynamic range. Similar to UTC A24 and Triad HS-50 (in overall 5:1 configuration) but with improved bandwidth. Suitable for Drip Electronics Opto 4 and 5 PCB. Also suitable for UE-100 Output.
This transformer is very similar to type 1010 and is essentially a size and cost reduced version achieved by using a smaller lamiination size and a smaller proportion of Mumetal laminations. The can size is also smaller and less expensive. The performance is unaffected except at very high level low frequencies where the THD measures somewhat higher.

Price: 96.59 (Excluding VAT at 20%)

Data sheet

1010 Teletronix LA-2A 1968 15K/600 Line op.

1010 Teletronix LA-2A 1968 15K/600 Line op.

Ratio 5:1. 15k/600 ohms output transformer for driving balanced line from ac coupled cathode follower or SRPP circuit. Total dc resistance ref secondary 30 ohms. Colour coded leads (Type 1010A) or PCB pins (Type 1010B). Size A. Max output level +30 dBu. 50% Mumetal core for exceptional bandwidth and dynamic range. Similar to UTC A24 and Triad HS-50 (in overall 5:1 configuration) but with improved bandwidth. Fits Drip Electronics OPTO 4 PCB. Pro Audio Size K.

Price: 89.60 (Excluding VAT at 20%)

Package options

Data sheet

0295 Teletronix LA-2A Mains WW Primary.

0295 Teletronix LA-2A Mains WW Primary.

Power transformer for Teletronix LA-2A Compressor.
2 x 120,110 V Primary. 250-0-250 at 40 mA. 6.3V CT at 2 A. Internal electrostatic shield for reduction of noise caused by power line transients. Fully shrouded package. Size "F". Tested with Drip Electronics OPTO4 PCB

Price: 149.28 (Excluding VAT at 20%)

Circuit

0208 Teletronix LA-2A Mains EU Primary.

0208 Teletronix LA-2A Mains EU Primary.

Power transformer for Teletronix LA-2A Compressor.
240, 220, 200, 0, -10 Primary. 250-0-250 at 40 mA. 6.3V CT at 2 A. Internal electrostatic shield for reduction of noise caused by power line transients. Fully shrouded package. Size "F". Tested with Drip Electronics OPTO4 PCB

Price: 149.28 (Excluding VAT at 20%)

Circuit

8940 Teletronix  Drip Opto 4  LA-2A  5K/600 Line op.

8940 Teletronix Drip Opto 4 LA-2A 5K/600 Line op.

Ratio 3:1. 5k/600 ohms output transformer for driving balanced line from ac coupled cathode follower or SRPP circuit. Total dc resistance ref secondary 17 ohms. Colour coded leads (Type 8940A) or PCB pins (Type 8940B). Size A. Max output level +29 dBu. 50% Mumetal core for exceptional bandwidth and dynamic range. Suitable for Altec 1566a. Tested with Drip Electronics OPTO4 PCB where it should be used in conjunction with type 4383 input transformer.

Price: 88.33 (Excluding VAT at 20%)

Package options

Circuit

9830 RCA BA-6A Compressor Interstage

9830 RCA BA-6A Compressor Interstage

High performance transformer for repair or reconstruction of the RCA BA-6A Compressor. Radiometal (50% Nickel) transformer in Mumetal can. Will fit into original 78 x 100 mm can. Impedance ratio 10k CTK/10k. Colour coded leads.

Price: 158.69 (Excluding VAT at 20%)

More information

9835 RCA BA-6A Input Transformer

9835 RCA BA-6A Input Transformer

High performance configurable transformer for repair or reconstruction of the RCA BA-6A Compressor. Ratio 600/150 CT: 10K. Max input level (600 ohm configuration) +16 dBu. Colour coded leads.

Price: 98.51 (Excluding VAT at 20%)

More information

9770 RCA BA-6A Output Transformer

9770 RCA BA-6A Output Transformer

Replacement output transformer for RCA BA-6A limiting amplifier. Push-Pull 6V6 8000 ohms to 600 ohms. Full geometric balancing. 10 separate winding sections for excellent bandwidth and transient response. Size "K" fully shrouded construction. Colour coded leads.

Price: 160.55 (Excluding VAT at 20%)

More information

1195 RCA 86-AL/86-A Compressor Interstage

1195 RCA 86-AL/86-A Compressor Interstage

High performance transformer for repair or reconstruction of the RCA 86-AL or 86-A Compressor. Radiometal (50% Nickel) transformer in Mumetal can. Will fit into original 78 x 100 mm can. Impedance ratio 10k+10k/20k. Colour coded leads.

Price: 158.69 (Excluding VAT at 20%)

1260 Urei/Universal 1176F  Input Transformer 500/200 Ohms

1260 Urei/Universal 1176F Input Transformer 500/200 Ohms

Ratio 1:1.58 200/500 Ohms. Sowter designed transformer non configurable replacement for the original UTC O-12 transformer. Max level +14 dBu at 50 Hz. Internal electrostatic shield to ensure good comon mode noise rejection. Mumetal can 34 mm diameter with colour coded leads and threaded mounting boss.

Price: 61.12 (Excluding VAT at 20%)

Package Options

1327 Urei/Universal Output transformer for 1176D or 1176A

1327 Urei/Universal Output transformer for 1176D or 1176A

600/150+150 with 600 and 1.3 Ohm feedback windings. Replacement for UA-5002. Tested with the 1176 Rev D compressor. Gapped M6 core. Colour coded leads. Size C

Price: 64.85 (Excluding VAT at 20%)

Connections

Page:  1  2   >   >>   View All (19)
