STYLE T - HALF SHROUDED
STYLE T - HALF SHROUDED

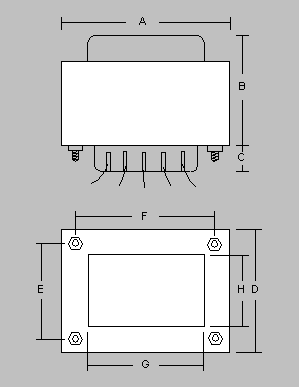

Chassis cut-out (G x H)		 Ref = Style/Size. Dimensions in mm
half shrouded drop through style T Ref A B C D E F G H
TE 80 49 24 67 51 63 51 39
TF 80 56 24 67 51 63 51 39
TG 80 62 24 67 51 63 51 39
TH 80 75 24 67 51 63 51 39
TI 89 54  25 75 57 72 57 43
TJ 89 63 25 75 57 72 57 43
TK 89 83 25 75 57 72 57 43
TL 115 54 27 96 77 95.5 80 70
TM 115 67 27 96 77 95.5 80 70
TN 115 80 27 96 77 95.5 80 70
TO 115 93 27 96 77 95.5 80 70
TP 115 106 27 96 77 95.5 80 70
TQ 134 115 29 112 90 111.5 95 75
TT 134 128 29 112 90 111.5 95 75
TR 134 141 29 112 90 111.5 95 75
This package style is available for Mains and Push-Pull sizes L - S but not for Chokes or SE Output transformers which require a gapped core. This is because removal of the lower frame while mounting on your chassis could upset the gap adjustment which is set in our factory.
