| PACKAGE | PACKAGE OPTIONS | PART NUMBER |
SOWTER TYPE U071
|
| SIZE
"Q"
8.8 Kg |
Fully shrouded | U071-S | |
| Drop through | U071-T | ||
| Open frame | U071-O |
|
|
|
| APPLICATION A generously designed Push-Pull output transformer for use with two parallel pairs of KT88 or similar valves in Triode or Ultra Linear mode with or without overall negative feedback. | ||
| FEATURES 3 inch Grain Oriented (M6) laminated core for minimal losses and distortion. 14 section interleaved primary and secondary windings to give excellent bandwidth. Two chamber bobbin ensures full capacity and resistance balance to eliminate distortion caused by transformer unbalance. Low copper resistance to minimize losses and maximize loudspeaker damping. 4 separate secondary windings (See below) for optimum matching to load without the use of tapped windings which can reduce HF response. Other secondary configurations can be selected at time of order. | ||
| POWER RATING | 200 Watts at 20 Hz. | |
| Primary | Secondary | |
| Nominal winding impedance | 2250 ohms | 16/8/4 ohms |
| Inductance | 90 H | 2.4 mH |
| DC Resistance | 61 ohms | 0.9 ohms |
| Leakage inductance | 2.5 mH ref primary | |
| DC current per side | 250 mA max | |
| Ratio (16 ohm configuration) | 11.86 :1 | |
| UL taps | 40% | |

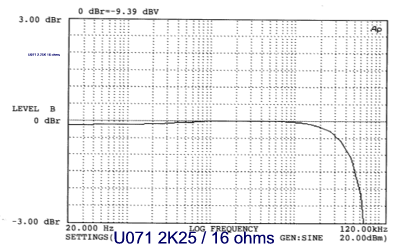

| Bandwidth | 10 Hz to 60 KHz (-3 dB points typical) | |
| Total Harmonic Distortion | 0.05 % at 1 kHz full power | |
| CONNECTIONS | |
|
| E A
