SOWTER TYPE SE09
5000 ohms 20W SINGLE ENDED OUTPUT TRANSFORMER FOR 845 ETC
| PACKAGE OPTIONS | PACKAGE CODE |
SOWTER TYPE SE095000 ohms 20W SINGLE ENDED OUTPUT TRANSFORMER FOR 845 ETC |
|

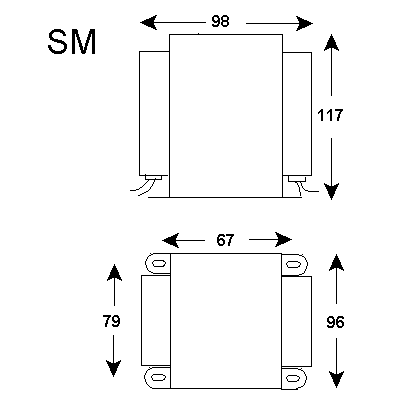

| FULLY SHROUDED | SE09-S | ||

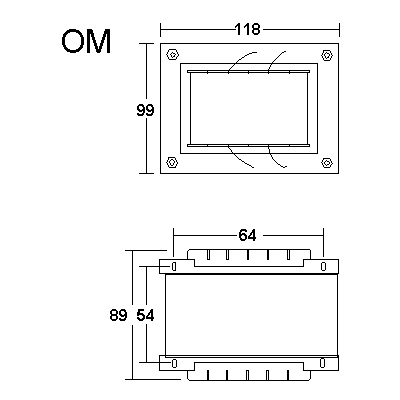

| OPEN FRAME | SE09-O | ||
|
|
||
| APPLICATION High performance 20W single ended output transformer for use 845 or similar valve requiring a 5000 ohm reflected load. | |||
| FEATURES Highest grade low loss (M6) grain oriented silicon iron core for minimal distortion. 14 interleaved winding sections to maximize bandwidth and ensure clean transient response. Low copper resistance to minimize losses and maximize loudspeaker damping. 4 separate secondary windings (See below) for optimum matching to load without the use of tapped windings which can reduce HF response. Optional secondary winding configuration. Optional shrouded or open frame package styles. | |||
| PACKAGE SIZE | M | ||
| WEIGHT | 3.4 kg | ||
| WINDINGS: | Nominal Z | DC Resistance | |
| PRIMARY | 5000 ohms | 195 ohms | |
| SECONDARY | 16/8/4 ohms | 1.35 ohms | |
| ALTERNATIVE SECONDARY OPTIONS | Tapped 8/4 ohms | ||
| DC quiescent current (no signal) | 95 mA | ||
| Maximum Power at 30 Hz | 20 Watts | ||
| PRIMARY INDUCTANCE | 36 Henrys | ||

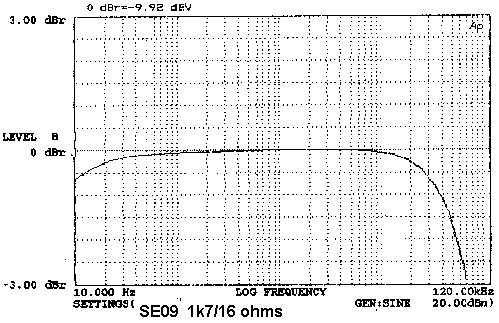

| FREQUENCY RESPONSE (700 ohm source, 16 ohm load) | 8 Hz to 70 kHz (-3 dB points typical) | ||
|
|
||
