PACKAGE OPTIONS PACKAGE CODE

SOWTER TYPE SA01

5000 ohms SINGLE ENDED OUTPUT TRANSFORMER FOR TRIODE CONNECTED EL84 FOR GUITAR USE
FULLY SHROUDED SA01-S

APPLICATION A high performance transformer optimised for guitar use. The transformer will generate colouration due to progressive core saturation with an output power of 7.5 Watts and above at 50 Hz.
FEATURES Highest grade low loss (M6) grain oriented silicon iron core for high efficiency and tonal quality. 7 interleaved winding sections to maximize bandwidth and ensure clean transient response. Low copper resistance to minimize losses and maximize loudspeaker damping. 4 separate secondary windings (See below) for optimum matching to load without the use of tapped windings which can reduce HF response. Optional secondary winding configuration. Optional shrouded or open frame package styles.

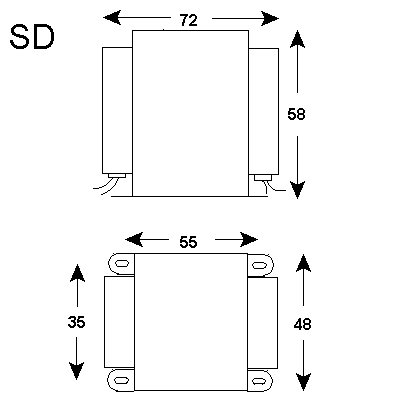

PACKAGE SIZE D WEIGHT 0.9 kg
WINDINGS: Nominal Z DC Resistance
PRIMARY 5000 ohms 249 ohms
SECONDARY 16/8/4 ohms 1.25 ohms
ALTERNATIVE SECONDNDARY OPTIONS Tapped 8/4 ohms
DC quiescent current (no signal) 45 mA
Maximum Power undistorted power at 50 Hz 5 Watts
Maximum power with harmonic colouration 10 Watts

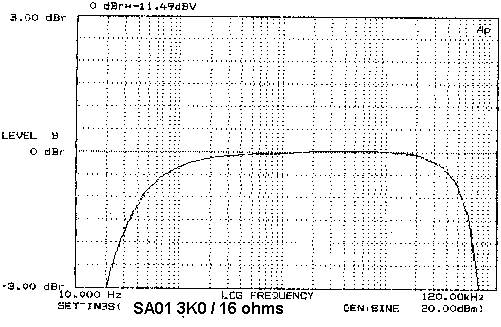

FREQUENCY RESPONSE (3000 ohm source, 16 ohm load) 20 Hz to 80 kHz (-3 dB points typical)
