Sowter Type 9050

Double Triode to 600 ohm Line Output Transformer

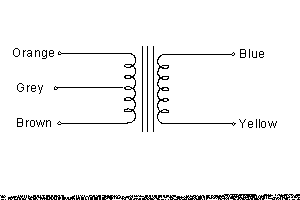

Coloured Leads

9050-A

Solder Tags

9050-X

PCB Pins

9050-B

APPLICATION For use in a high performance valve compressor/amplifier etc. Designed for use with a double triode such as an ECC83 or 6SN7 in push-pull driving a nominal 600 ohm line. We recommend using a secondary load resistor. 600 ohms will provide a constant reflected anode to anode load of 16000 ohms when the amplifier is feeding a typical 600 ohm line. This also lowers the effective output impedance of the amplifier.

FEATURES Combination core using High grade Grain Oriented Silicon Iron (M6) and Mumetal (76% Nickel). This provides a high level capability, exceptional bandwidth and transient response which is maintained over the full dynamic range. This core also permits the use of a relatively high ratio which ensures a low output impedance for driving lines or complex loads.

RATIO

6 : 1

MAXIMUM OUTPUT LEVEL 0.5 % THD at 50 Hz

+30 dBu

Max dc current per anode

30 mA

Max unbalance current

500 uA

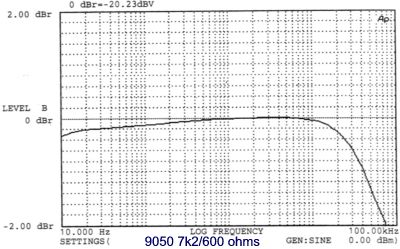

FREQUENCY RESPONSE 8K0 source 600 ohm load

+/- 0.5 dB 10Hz to 50KHz

TOTAL DC RESISTANCE referred to secondary

34 ohms

EFFECTIVE OUTPUT IMPEDANCE (with 600 ohm secondary resistor)

175 ohms

E A Sowter Ltd.
The Boatyard, Cullingham Road
IPSWICH IP1 2EG England

Tel: +44(0)1473 252794
Fax: +44(0)1473 236188
E-Mail sales@sowter.co.uk
