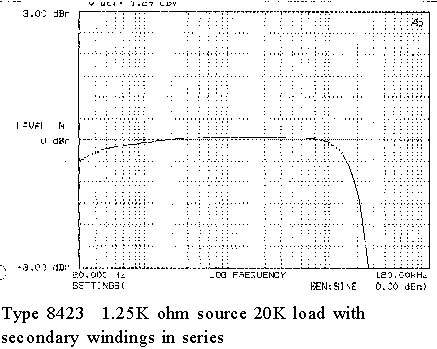

Sowter type 8423
Configurable Tube Interstage Transformer
Fax: +44(0)1473 236188
Sowter type 8423Configurable Tube Interstage Transformer |
PACKAGE SIZE F+ | |||||
|
|
|||||
| APPLICATION For driving power output stages. Two identical secondary windings are provided which may be used in parallel for maximum current or in series for maximum voltage drive to single ended output stages. The two windings may be used for independent drive of parallel single ended stages or used as a phase splitter for push-pull stages. Best performance is obtained when driven from a low impedance. A resistive load across the secondary may be helpful in damping the leakage resonance which can vary due the grid capacitance of the driven stage. | ||||||
| FEATURES High grade grain oriented silicon iron (M6) core for minimal losses and harmonic distortion. Multi section winding for optimum frequency response. A two chamber bobbin is used for full capacitance and resistance balance in push-pull configuration. | ||||||
| Ratio | Z ohms (nominal) | L pry. Henries | I dc mA | Bandwidth | |
|
| 1:1+1 | 5k : 5K+5k | 25 | 50 | 30Hz-30kHz | ||
| E A Sowter Ltd The Boatyard, Cullingham Road IPSWICH IP1 2EG England | Tel: +44(0)1473 252794 Fax: +44(0)1473 236188 |
|||||
