Sowter Type 8356
General Purpose Hybrid Transformer
4 WIRE TO 2 WIRE COMMUNICATIONS
The Boatyard Cullingham Road
IPSWICH IP1 2EG England
Fax:+44(0)1473 236188
Sowter Type 8356General Purpose Hybrid Transformer
|
PACKAGE OPTIONS | Part Number |
| Coloured Leads | 8356-F | |
|
|
|

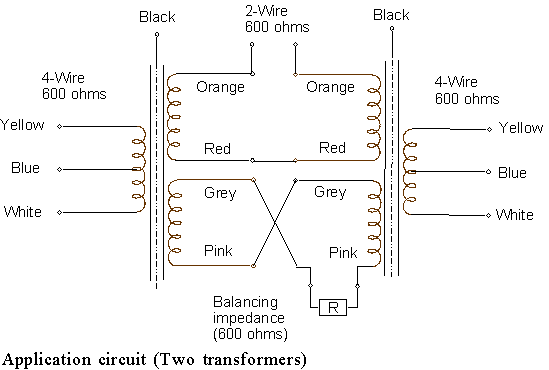

| APPLICATION Feeds 4-Wire go and return signals to a 2-Wire link and vice versa. The circuit prevents go and return signals interacting and causing oscillation. Can be used for combining two signals without cross-feeding them. e.g. for mono monitoring of stereo signals Bandwidth is ideal for speech or music. Two transformers are required for normal applications. Resistor (see diagram right) must be adjusted to compensate for 2-Wire load impedance. | ||
| FEATURES Double electrostatic shields for common mode noise rejection. Bifilar winding ensures excellent rejection of send signal over full frequency range. Heavy gauge Mumetal shielding can to minimise hum pick up. | ||
| RATIO | 1+1:1.4ct | |
| MAXIMUM LEVEL 1% THD at 50 Hz | +15 dBu | |
| FREQUENCY RESPONSE 600 ohm source 600 ohm load | +/- 1 dBu 20 Hz to 20kHz | |
|
||
