Sowter Type 8088
Two Way Microphone Splitter Transformer
The Boatyard Cullingham Road
IPSWICH IP1 2EG England
Fax:+44(0)1473 236188
Sowter Type 8088Two Way Microphone Splitter Transformer |
PACKAGE OPTIONS | Part Number | |
| Coloured Leads + Threaded Boss | 8088-E | ||
| Coloured leads side entry | 8088-F | ||
|
|
||

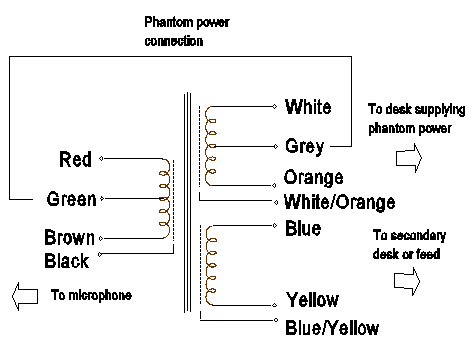

| APPLICATION For connecting one microphone to two channels. Phantom powering from one channel can be passed through to the microphone. Provides noise and hum rejection. Electrical isolation of second channel. Prevents ground loop problems. Helps to ensure EMC compliance. | |||
| FEATURES Mumetal core for minimal harmonic distortion and high bandwidth. High maximum signal level. Separate internal electrostatic shields for primary and each secondary winding allows for differing noise potentials on each equipment ground. Heavy gauge Mumetal can for magnetic shielding. | |||
| RATIO | 1ct:1ct+1 | ||
| MAXIMUM LEVEL 0.5 % THD at 50 Hz (40 Ohm source) | +10 dBu | ||
| INPUT/OUTPUT BALANCE | >50 dB | ||

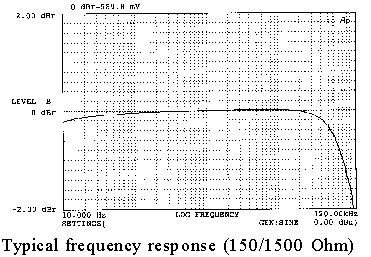

| FREQUENCY RESPONSE 150 ohm source, 1k5 ohm load | +/- 0.25 dB 10Hz to 50kHz | ||
|
|||
