SOWTER Type U083PUSH-PULL OUTPUT TRANSFORMER FOR Push-Pull 805 Triode etc |
PACKAGE OPTIONS |
STYLE CODE | |
| Fully Shrouded | S | ||
| Drop Through | T | ||
|
|
||
| APPLICATION A Very high performance output transformer for push-pull 805 triodes or similar valves. | |||
| FEATURES Highest grade low loss (M6) grain oriented silicon iron core for minimal distortion. 14 interleaved winding sections to maximize bandwidth and ensure clean transient response. Two chamber bobbin to ensure full geometric balance. Low copper resistance to minimize losses and maximize loudspeaker damping. 4 separate secondary windings (See below) for optimum matching to load without the use of tapped windings which can reduce HF response. Other secondary configurations available at time of order. Various package options. | |||
| Impedance | DC Resistance | Inductance | |
| PRIMARY | 7000 ohms | 99 ohms | 154 H |
| SECONDARY | 16/8/4 ohms | 0..55 ohms (16 ohm config) |
0..354 mH (16 ohm config) |
| LEAKAGE INDUCTANCE referred to primary | 3.84 mH | ||
| VOLTAGE RATIO (16 ohm config) | 20.92:1 | ||
| POWER (For 0.5 % Distortion at 20 Hz) | 100 W | ||
| DISTORTION (30 Watts at 1000Hz) | 0.05 % | ||
| DC QUIESCENT CURRENT | 200 mA max. | ||

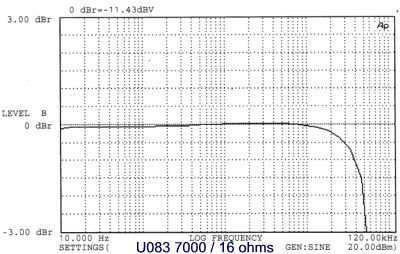

| FREQUENCY RESPONSE
(Typical) 1K75 ohm source (+/- 1.5 dB) |
5 Hz to 50 kHz | ||
|
|
||
