SOWTER Type SE17 High performance Single Ended Output Transformer for SV572-10 Triode

PACKAGE OPTIONS STYLE CODE
Fully Shrouded S
Encapsulated P+

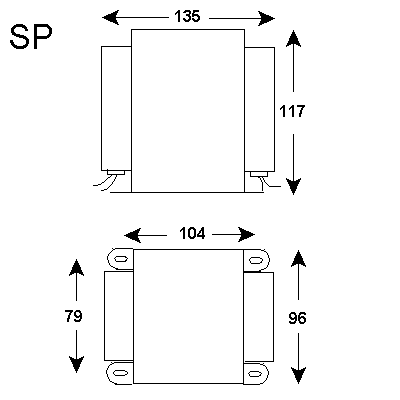

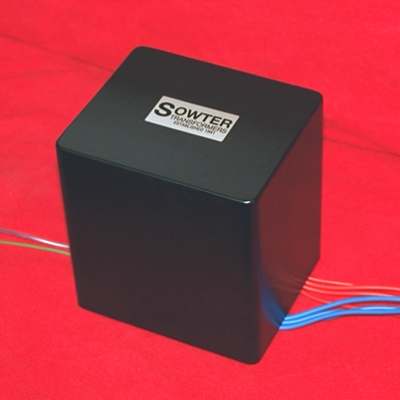

Size P style S Encapsulated package soe size P
APPLICATION A high performance transformer optimized for the SV572-10 triode.
FEATURES Highest grade low loss (M6) grain oriented silicon iron core for minimal distortion. 14 interleaved winding sections to maximize bandwidth and ensure clean transient response. Low copper resistance to minimize losses and maximize loudspeaker damping. 4 separate secondary windings (See below) for optimum matching to load without the use of tapped windings which can reduce HF response.
PRIMARY Z 5000 ohms DC Res 100 ohms
SECONDARY Z 16/8/4 ohms DC Res 0.4/0.24/0.2 ohms
POWER (For 0.5 % Distortion at 30 Hz) 40 W
PRIMARY INDUCTANCE (Approx value under normal operating conditions) 25H
DISTORTION (40 Watts at 1000Hz) 0.05 %
MAX DC QUIESCENT CURRENT 140 mA
FREQUENCY RESPONSE 1K0 ohm source (+/- 0.25 dB) 20 Hz to 40 kHz

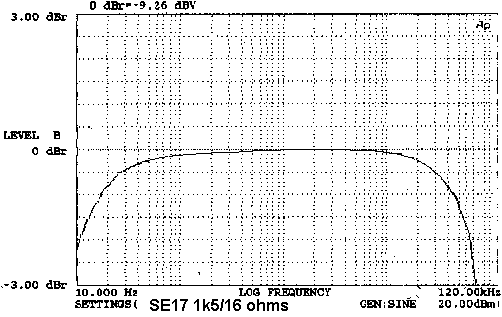

SE17 frequency response
SALES: E A Sowter Ltd The Boatyard, Cullingham Road, IPSWICH IP1 2EG, England sales@sowter.co.uk Tel: +44(0)1473 252794 Fax: +44(0)1473 236188
