Sowter Type 9945

10K/150+150 ohms  High Level Line

Output Transformer

SIMILAR TO 8403 WITH 4:1+1 RATIO
PACKAGE OPTIONS Part Number
Coloured Leads 9945-A
Tags 9945-X
PCB Pins 9945-B

Style X

Style B

APPLICATION For driving a balanced 600 ohm line from a transistor or valve amplifier with an ac coupled cathode follower, SSRP  output.   May be driven balanced or unbalanced. Ideal for building into a distribution amplifier or adding to existing equipment. Provides electrical isolation to minimize most kinds of noise caused when equipments are connected.
FEATURES High grade Grain Oriented Silicon Iron core for high level capability. Internal Electrostatic Screens to ensure optimum output balance. Twin primaries may be connected in series or parallel permitting a 4:1CT or 8:1 voltage ratio.  Low dc resistance to minimize insertion loss and output impedance.
VOLTAGE RATIO 8:1+1
MAXIMUM LEVEL (on 600 ohm winding)    0.5 % THD at 50 Hz  +34 dBu
DISTORTION at 50 Hz (40 ohm source) 0.1% at +28 dBu
INPUT/OUTPUT BALANCE >60 dB
DC RESISTANCE Total referred to secondary 53 ohms

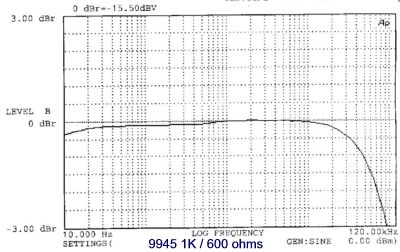

FREQUENCY RESPONSE 1k ohm source 600 ohm load +/- 0.25 dB 10 Hz to 45 kHz
  {short description of image}
