Sowter Type 9540
200/200 ohms General Purpose
Isolating Transformer
PO Box36 IPSWICH IP1 2EL England
Fax: +44(0)1473 236188
Sowter Type 9540200/200 ohms General Purpose
|
PACKAGE OPTIONS | Part Number |
| Coloured Leads | 9540-F | |
| PCB Mounting | 9540-C | |
|
|
|
| APPLICATION Electrical isolation of 200 ohm lines or microphones. For reduction of most kinds of noise caused when equipments are connected. For helping to ensure Electromagnetic Compatibility (EMC) standards compliance. May be used for balanced to unbalanced conversion and vice versa. May be used as a two way microphone splitter when a single microphone is required to feed two desks. One desk is fed directly and provides the phantom power and the other desk is isolated. | ||
| FEATURES Mumetal core for minimal harmonic distortion. Internal electrostatic shield for high common mode noise rejection. Mumetal can for magnetic shielding. | ||
| RATIO | 1:1 | |
| MAXIMUM LEVEL 0.5 % THD at 50 Hz (40 ohm source) | +10 dBu | |
| DISTORTION at 50 Hz (40 ohm source) | 0.05% at 0 dBu | |
| INSERTION LOSS 200 ohm source 200 ohm load | 1.85 dBu | |
| INPUT/OUTPUT BALANCE | >60 dB | |

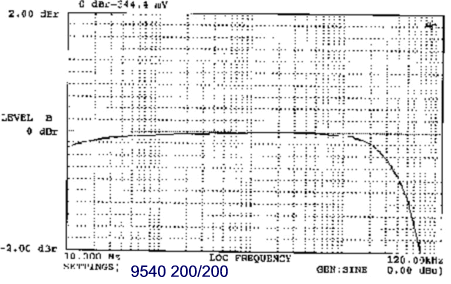

| FREQUENCY RESPONSE 600 ohm source 600 ohm load | +/- 0.25 dB 15 Hz to 30 kHz | |
|
||
