| PACKAGE | PACKAGE OPTIONS | PART NUMBER |
SOWTER TYPE 9092
|
| SIZE
"R"
11 Kg |
Fully shrouded | 9092-S | |
| Drop through | 9092-T | ||
| Open frame | 9092-O |
|
|
|
| APPLICATION A generously designed Push-Pull output transformer for use with a pair of 300B or similar valves in Triode mode with or without overall negative feedback. | ||
| FEATURES Very large 4 inch stack Grain Oriented (M6) laminated core for minimal losses and distortion. 14 section interleaved primary and secondary windings to give excellent bandwidth. Two chamber bobbin ensures full capacity and resistance balance to eliminate distortion caused by transformer unbalance. Extremely low copper resistance to minimize losses and maximize loudspeaker damping. 4 separate secondary windings (See below) for optimum matching to load without the use of tapped windings which can reduce HF response. Other secondary configurations can be selected at time of order. | ||
| POWER RATING at 10 Hz | 50 Watts | |
| POWER RATING at 20 Hz | 100 Watts | |
| Primary | Secondary | |
| Nominal winding impedance | 7000 ohms | 16/8/4 ohms |
| Inductance | 110 H | 0.25 mH |
| DC Resistance | 75 ohms | 0.25 ohms |
| Leakage inductance | 3 mH ref primary | |
| DC current per side | 250 mA max | |
| Ratio (16 ohm configuration) | 20.9 :1 | |

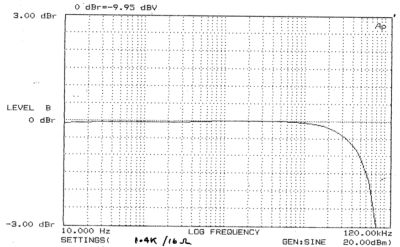

| Bandwidth | 5 Hz to 80 KHz (-3 dB points typical) | |
| Total Harmonic Distortion | 0.05 % at 1 kHz at 100W | |
| CONNECTIONS | |
|
| E A
