Sowter type 9083
HIGH BANDWIDTH INTERSTAGE TRANSFORMER FOR PUSH-PULL DRIVE. RATIO 1CT:1+1
Primary inductance
Maximum dc current per side
The Boatyard Cullingham Road
IPSWICH IP1 2EG England
Sowter type 9083
|
SIZE G PACKAGE OPTIONS | |
| FULLY SHROUDED STYLE "S" | ||
| DROP THROUGH STYLE "T" | ||
| OPEN FRAME STYLE "O" | ||
|
|
|
| APPLICATION Phase splitting transformer for driving from a push-pull stage. Two identical secondary windings of opposite phase for driving a power output stage. Secondary windings may be paralled for driving a single ended output stage. may be used in conjunction with type 1125 input phase splitter to make a power amplifier with no capacitors. | ||

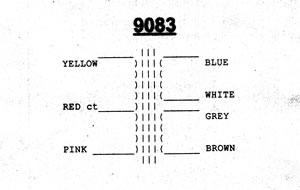

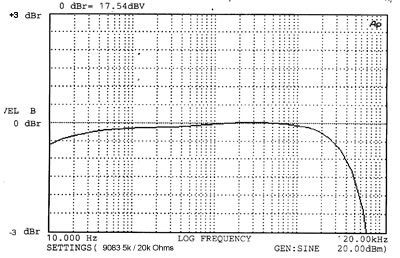

| FEATURES High primary inductance for high bandwidth even when driven from high impedance valves. Full geometric balance for near perfect phase splitting. 70 kHz bandwidth. 100% M6 core for high level with minimal distortion. Package options. Colour coded leads. Size G | ||
| Voltage ratio | 1 (center tapped):1+1 | |
| Nominal Impedance | 10k/10k+10k | Ohms |
Primary inductance |
40 | Henrys |
| Maximum input voltage for 0.5% THD at 20 Hz | 150 | V rms |
Maximum dc current per side |
70 | mA |
| Maximum dc unbalanced dc | 5 | mA |
| Primary dc resistance | 124 | Ohms |
| Secondary dc resistance | 400 | Ohms |
|
||
