SOWTER Type 8950
PUSH-PULL OUTPUT TRANSFORMER FOR WILLIAMSON AMPLIFIER
The Boatyard Cullingham Road
IPSWICH IP1 2EG England
Fax: +44(0)1473 236188
SOWTER Type 8950PUSH-PULL OUTPUT TRANSFORMER FOR WILLIAMSON AMPLIFIER |
PACKAGE OPTIONS | STYLE CODE | |
| Fully Shrouded | S | ||
| Encapsulated | P+ | ||
| Drop Through | T | ||
|
|
||
| APPLICATION our interpretation of the original Williamson design using more modern materials. This means a higher grade of core material, better copper and inter-winding insulation. Lower distortion and longer life. | |||
| FEATURES Highest grade low loss (M6) grain oriented silicon iron core for minimal distortion. 14 interleaved winding sections to maximize bandwidth and ensure clean transient response. Two chamber bobbin to ensure full geometric balance. Low copper resistance to minimize losses and maximize loudspeaker damping. 4 separate secondary windings (See below) for optimum matching to load without the use of tapped windings which can reduce HF response. | |||
| Impedance | DC Resistance | Inductance | |
| PRIMARY | 10000 ohms | 132 ohms | 117 H |
| SECONDARY | 16/8/4 ohms | 0.3/0.22/0.15 ohms | 118 mH (16 ohm config) |
| Leakage inductance referred to primary | 2.7 mH | ||
| POWER (For 0.5 % Distortion at 20 Hz) | 30 W | ||
| DISTORTION (30 Watts at 1000Hz) | 0.05 % | ||
| DC QUIESCENT CURRENT | 100-150 mA | ||

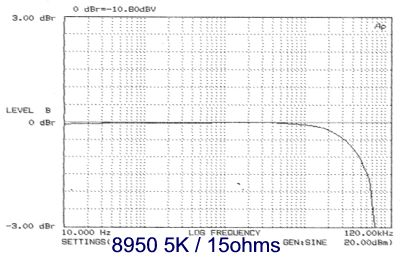

| FREQUENCY RESPONSE 5K0 ohm source (+/- 1.5 dB) | 5 Hz to 70 kHz | ||
|
|
||
