Sowter Type 5069

600 / 600 ohms High Level
Isolating Transformer

PACKAGE OPTIONS Part Number Canford Product Code
Coloured Leads 5069-F 23-165
PCB Mounting 5069-C 23-166
APPLICATION Electrical isolation where source or load are low impedance. For reduction of most kinds of noise caused when equipments are connected. For helping to ensure Electromagnetic Compatibility (EMC) standards compliance. May be used for balanced to unbalanced conversion and vice versa.
FEATURES Mumetal core for minimal harmonic distortion. Internal electrostatic shield for high common mode noise rejection. Mumetal can for magnetic shielding. High signal level capability.
RATIO 1:1
MAXIMUM LEVEL 0.5 % THD at 50 Hz (40 ohm source) +24 dBu
DISTORTION at 50 Hz (40 ohm source) 0.06% at +18 dBu
INSERTION LOSS 600 ohm source 600 ohm load 2.2 dBu
INPUT/OUTPUT BALANCE >60 dB

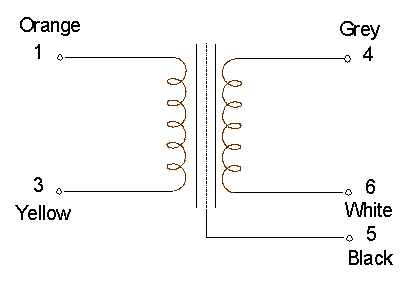

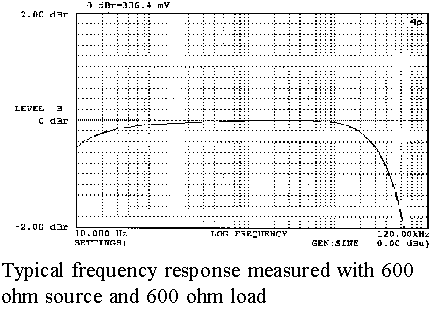

FREQUENCY RESPONSE 600 ohm source 600 ohm load +/- 0.25 dB 15 Hz to 25 kHz
