Sowter Type 4679
2-Way 600 Ohm Line Splitter/Combiner
Transformer
The Boatyard Cullingham Road
IPSWICH IP1 2EG England
Fax:+44(0)1473 236188
Sowter Type 46792-Way 600 Ohm Line Splitter/CombinerTransformer |
PACKAGE OPTIONS | Part Number | |
| Coloured Leads | 4679-F | ||
|
|
||
| APPLICATION Splits the output of one microphone or line into two channels or combines two microphones or lines into one channel while retaining electrical isolation. Accepts balanced or unbalanced inputs or outputs. | |||
| FEATURES Mumetal core for minimal harmonic distortion. Multiple interleaved windings to minimise leakage inductance ensuring excellent high frequency response. Primary winding centre tapped for optional grounding or phantom powering. Mumetal can for magnetic shielding. | |||

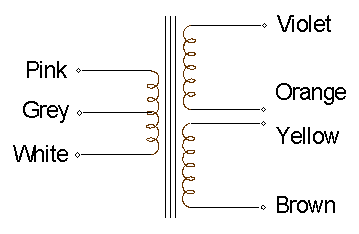

| RATIO | 1ct:1+1 | ||
| MAXIMUM LEVEL 0.5 % THD at 50 Hz (40 ohm source) | +21 dBu | ||
| INSERTION LOSS 600 ohm source 600+600 ohm load | 4.17 dB | ||

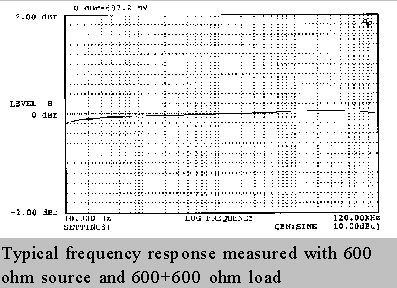

| FREQUENCY RESPONSE 600 Ohm source 600+600 Ohm load | +/- 0.25 dB 15 Hz to 40 kHz | ||
|
|
||
