Sowter Type 4674
3-Way Microphone Splitter/Combiner
Transformer
The Boatyard Cullingham Road
IPSWICH IP1 2EG England
Fax:+44(0)1473 236188
Sowter Type 46743-Way Microphone Splitter/Combiner
|
PACKAGE OPTIONS | Part Number |
| Coloured Leads | 4674-I | |
| Coloured leads plus threaded grommet | 4674-E | |
|
|
|
| APPLICATION Splits the output of one microphone into three channels or combines three microphones into one channel while retaining electrical isolation. Accepts balanced or unbalanced inputs or outputs. | ||
| FEATURES Mumetal core for minimal harmonic distortion. Multiple interleaved windings to minimise leakage inductance ensuring excellent high frequency response. Primary winding centre tapped for optional grounding or phantom powering. Mumetal can for magnetic shielding. | ||
| RATIO | 1ct:1+1+1 | |
| MAXIMUM LEVEL 0.5 % THD at 50 Hz (40 ohm source) | +15 dBu | |
| INSERTION LOSS 200 ohm source 200+200+200 ohm load | 4.13 dB | |

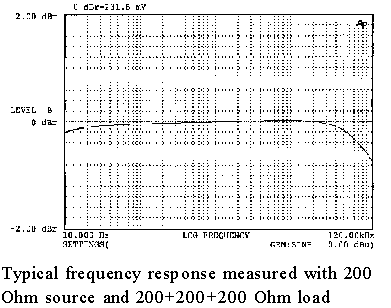

| FREQUENCY RESPONSE 200 Ohm source 200+200+200 Ohm load | +/- 0.25 dB 15 Hz to 50 kHz | |
|
|
|
