Sowter Type 4297
2-Way Microphone Splitter/Combiner

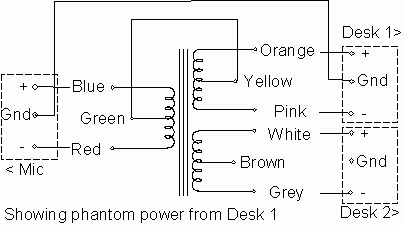

PHANTOM POWER OPTION
The Boatyard Cullingham Road
IPSWICH IP1 2EG England
Fax:+44(0)1473 236188
Sowter Type 42972-Way Microphone Splitter/Combiner
|
PACKAGE OPTIONS | Part Number |
| Coloured Leads | 4297-F | |
|
|
|
| APPLICATION Splits the output of one microphone into two channels while retaining electrical isolation. All 3 windings are centre tapped so that they can be joined to pass phantom power from one desk to the microphone. May also be used to combine two microphones into one channel. | ||
| FEATURES Mumetal core for minimal harmonic distortion. Multiple interleaved windings to minimize leakage inductance ensuring excellent high frequency response. Primary winding centre tapped for optional grounding or phantom powering. Mumetal can for magnetic shielding. | ||
| RATIO | 1ct:1ct+1ct | |
| MAXIMUM LEVEL 0.5 % THD at 50 Hz (40 ohm source) | +17 dBu | |
| INSERTION LOSS 200 ohm source 200 + 200 ohm load | 4.9 dB | |
| FREQUENCY RESPONSE 200 Ohm source 200+200 Ohm load | +/- 0.25 dB 15 Hz to 40 kHz | |
|
|
|
