Sowter Type 4079

2-Way Microphone Splitter/Combiner
Transformer

PACKAGE OPTIONS Part Number

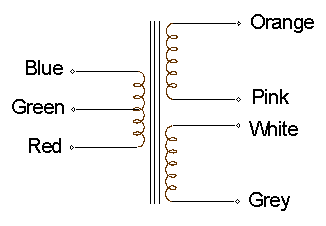

Coloured Leads 4079-F
 {short description of image}
APPLICATION Splits the output of one microphone into two channels or combines two microphones into one channel while retaining electrical isolation. Accepts balanced or unbalanced inputs or outputs.
FEATURES Mumetal core for minimal harmonic distortion. Multiple interleaved windings to minimise leakage inductance ensuring excellent high frequency response. Primary winding centre tapped for optional grounding or phantom powering. Mumetal can for magnetic shielding.
RATIO 1ct:1+1
MAXIMUM LEVEL 0.5 % THD at 50 Hz (40 ohm source) +17 dBu
INSERTION LOSS ohm source ohm load 4.9 dB

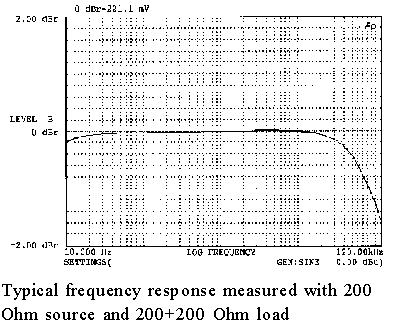

FREQUENCY RESPONSE 200 Ohm source 200+200 Ohm load +/- 0.25 dB 15 Hz to 40 kHz
