Sowter Type 3292
600 / 600 ohms General Purpose
Isolating Transformer
The Boatyard Cullingham Road
IPSWICH IP1 2EG England
Fax: +44(0)1473 236188
Sowter Type 3292600 / 600 ohms General Purpose
|
PACKAGE OPTIONS | Part Number | Canford Product Code |
| Coloured Leads | 3292-F | 23-161 | |
| PCB Mounting | 3292-C | 23-162 | |
|
|
||
| APPLICATION Electrical isolation where source or load are low impedance. For reduction of most kinds of noise caused when equipments are connected. For helping to ensure Electromagnetic Compatibility (EMC) standards compliance. May be used for balanced to unbalanced conversion and vice versa. | |||
| FEATURES Mumetal core for minimal harmonic distortion. Internal electrostatic shield for high common mode noise rejection. Mumetal can for magnetic shielding. Primary centre tapped for phantom powering etc. | |||

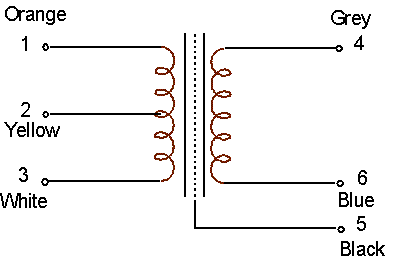

| RATIO | 1ct:1 | ||
| MAXIMUM LEVEL 0.5 % THD at 50 Hz (40 ohm source) | +10.5 dBu | ||
| DISTORTION at 50 Hz (40 ohm source) | 0.05% at +5 dBu | ||
| INSERTION LOSS 600 ohm source 600 ohm load | 1.62 dBu | ||
| INPUT/OUTPUT BALANCE | >60 dB | ||

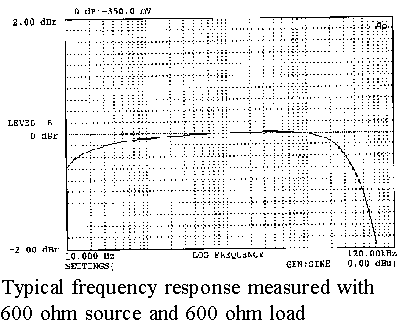

| FREQUENCY RESPONSE 600 ohm source 600 ohm load | +/- 0.25 dB 20 Hz to 30 kHz | ||
|
|
||
