Sowter Type 3232

10K / 10K High Level
Bridging Transformer

PACKAGE OPTIONS Part Number
Coloured Leads 3232-F
PCB Mounting 3232-C
APPLICATION Electrical isolation where source or load are low impedance. For reduction of most kinds of noise caused when equipments are connected. For helping to ensure Electromagnetic Compatibility (EMC) standards compliance. May be used for balanced to unbalanced conversion and vice versa.
FEATURES Mumetal core for minimal harmonic distortion. Internal electrostatic shield for high common mode noise rejection. Mumetal can for magnetic shielding. High signal level capibility.
RATIO 1ct:1
MAXIMUM LEVEL 0.5 % THD at 50 Hz (40 ohm source) +31 dBu
DISTORTION at 50 Hz (40 ohm source) 0.03% at +18 dBu
INSERTION LOSS 600 ohm source 600 ohm load 1.46 dBu
INPUT/OUTPUT BALANCE >45 dB

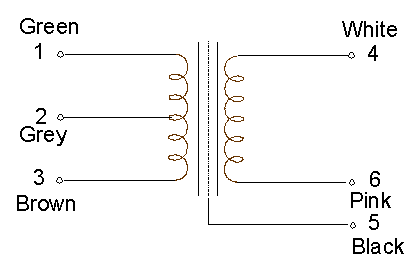

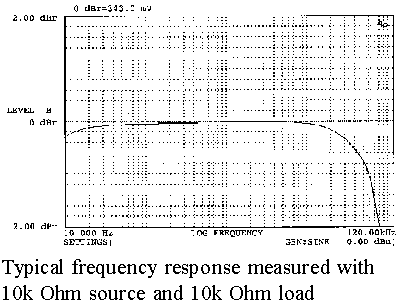

FREQUENCY RESPONSE 10k Ohm source 10k Ohm load +/- 0.25 dB 10 Hz to 30 kHz
