Sowter Type 3195
General Purpose Microphone Transformer
The Boatyard Cullingham Road
IPSWICH IP1 2EG England
Fax::+44(0)1473 236188
Sowter Type 3195General Purpose Microphone Transformer |
PACKAGE OPTIONS | Part Number | Canford Code |

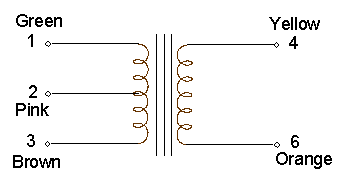

| Coloured Leads | 3195-F | 23-173 | |
| PCB Mounting | 3195-C | 23-17 | |
|
|
||
| APPLICATION High gain 200 ohm microphone input transformer matching to a high input impedance amplifier. For reduction of most kinds of noise caused when equipments are connected. May be used for balanced to unbalanced conversion and vice versa. | |||
| FEATURES Mumetal core for minimal harmonic distortion. Multiple interleaved windings ensure low leakage inductance for excellent high frequency response. Mumetal can for magnetic shielding. Centre tap for phantom powering. | |||
| RATIO | 1ct:7 | ||
| MAXIMUM LEVEL 0.5 % THD at 50 Hz (40 ohm source) | +4 dBu | ||
| DISTORTION at 50 Hz (40 ohm source) | 0.05% at -2 dBu | ||
| INSERTION LOSS 200 ohm source 25k ohm load | 0.53 dBu | ||
| INPUT/OUTPUT BALANCE | >60 dB | ||

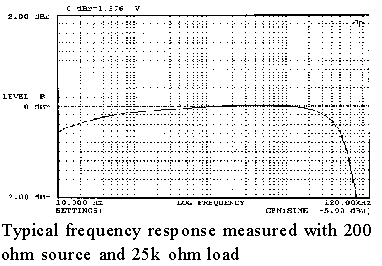

| FREQUENCY RESPONSE 200 ohm source 25k ohm load | +/- 0.25 dB 20 Hz to 40 kHz | ||
|
|
||
