SOWTER TYPE 1478 (replaces 7456)
HIGH PERFORMANCE INPUT TRANSFORMER
Replacement for Marinair ZUTT012a
|
| 2 x M3 holes centre
leads side |
1478-F |
| Threaded grommet |
1478-E |
|

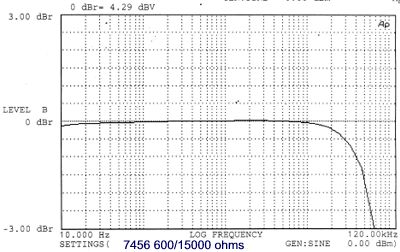

FREQUENCY RESPONSE measured using 600 ohm source and
15k ohm load
|
 |
| APPLICATION Exceptionally
high level, high bandwidth, low distortion 600 ohm or 200 ohm input transformer.
Suitable as replacement for original transformer in Trident A range, B
range, Fleximix and other vintage recording
studio units. No uncancelled
dc permitted in primary or secondary windings. |
| FEATURES
Unusually 70% Mumetal/30% M6 laminated core for minimal distortion even at
very high levels. Very high inductance ensures an input impedance of at least 1000 Ohms over a wide frequency rqange when the secondary is loaded with 50K Ohms. Heavy Mumetal screening can to ensure
immunity from hum fields. |
| Voltage ratio |
1:5.9 |
| Bandwidth (-3 dB points, typical) |
5 Hz to 50 kHz |
| DC resistance (primary) |
80 ohms (approx) |
| DC resistance (secondary) |
2370 ohms (approx) |
| Primary inductance (approx) |
15H (approx) |
| Max. input level at 50 Hz |
+20 dBu |
| Total harmonic distortion |
0.002% at 1kHz |
|
Package size
|
E See here |
|
|
