Sowter Type 1235
75+75/600 ohms Balanced High Level Line
Output Transformer

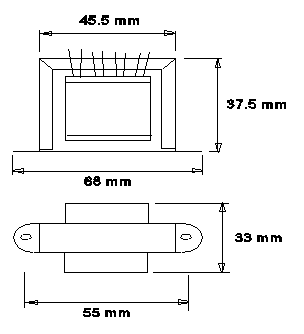

Style X
Style B
The Boatyard Cullingham Road
IPSWICH IP1 2EG England
Fax:+44(0)1473 236188
Sowter Type 123575+75/600 ohms Balanced High Level LineOutput Transformer |
PACKAGE OPTIONS | Part Number |
| Coloured Leads | 1235-A | |
| Tags | 1235-X | |
| PCB Pins | 1235-B | |
|
Style X |
Style B |
|
| APPLICATION For driving a balanced 600 ohm line from a desk or distribution amplifier with a high signal level. May be driven balanced or unbalanced. Ideal for building into a distribution amplifier or adding to existing equipment. Provides electrical isolation to minimize most kinds of noise caused when equipments are connected. | ||
| FEATURES High grade Grain Oriented Silicon Iron core for high level capability. Internal Electrostatic Screens to ensure optimum output balance. Twin primaries may be connected in series or parallel permitting a 1:1.41 or 1:2.83 or viceversa voltage ratio. Low dc resistance to minimize insertion loss and output impedance. Repalcement for Neve LO1173 | ||
| RATIO | 1+1:2.83 | |
| MAXIMUM LEVEL 0.5 % THD at 50 Hz (40 ohm source, primary windings in series) | +34 dBu | |
| DISTORTION at 50 Hz (40 ohm source) | 0.1% at +28 dBu | |
| INSERTION LOSS 100 ohm source 1K2 ohm load | 0.52 dBu | |
| INPUT/OUTPUT BALANCE | >60 dB | |
| DC RESISTANCE Total referred to primary | 31 ohms | |
| FREQUENCY RESPONSE 40 ohm source 1K2 ohm load | +/- 0.25 dB 10 Hz to 30 kHz | |
|
||
