SOWTER Type 0526
GENERAL PURPOSE MAINS TRANSFORMER
SUITABLE FOR FAIRCHILD 670 COMPRESSOR
SOWTER Type 0526GENERAL PURPOSE MAINS TRANSFORMER |
PRIMARY OPTIONS | Part Number |
| WW | 0526-WW | |
| EU | 0526-EU | |
|
|
|
| APPLICATION General purpose mains transformer for valve amplifiers. Suitable for Fairchild 670 compressor. part number T302 | ||
| FEATURES Low loss Grain Oriented Silicon Steel (GOSS) core. Colour coded leads. Package Options. Good regulation with secondary voltages specified at rated current. | ||

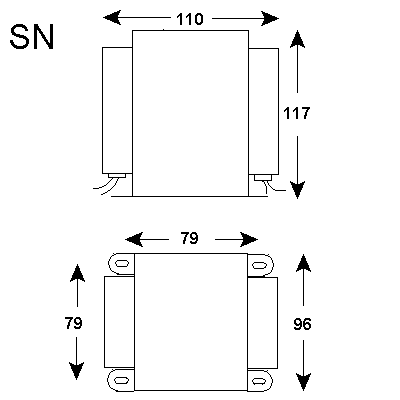

| DIMENSIONS | See link: SIZE N | |
| WEIGHT | 4.9 kg approx. | |
| WW PRIMARY (two windings connected in series or parallel) | 0-110-120 V x2 | |
| EU PRIMARY | -10-0-200-220-240 V | |
| SECONDARY 1 | 375-0-375V at 200 mA | |
| SECONDARY 2 | 6.3V CT at 5A | |
| SECONDARY 3 | 5.0V at 2A | |
